1351460000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

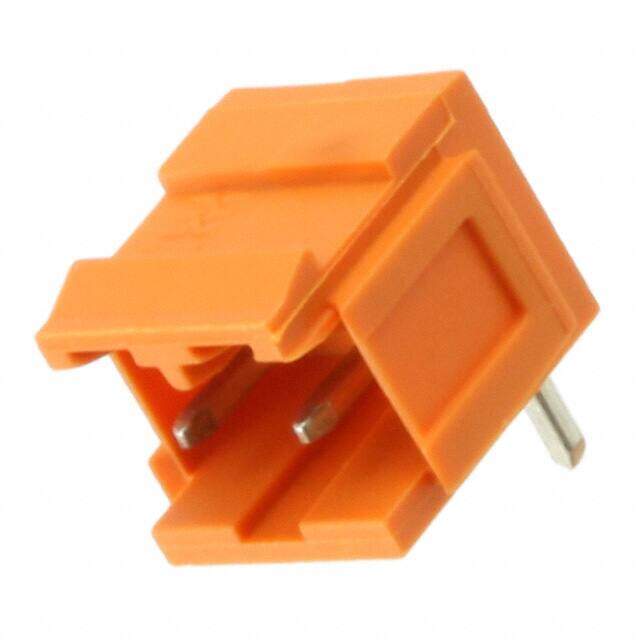

TERM BLOCK HDR 2POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $1.09
Unit Price: USD $1.0912
≥1 USD $1.0912
≥10 USD $0.76912
≥100 USD $0.717024
≥500 USD $0.650848
≥1000 USD $0.647944
Inventory: 130
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 12mm
Height 9.4mm
Technical
Number of Positions Per Level 2
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Contact Tail Length 0.177 4.50mm
Voltage 300V
Insulation Resistance 1MOhm
UL Flammability Code 94V-0
Termination Style Solder
Insulation Height 0.370 9.40mm
Total Number of Contacts 2
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 1
Color Orange
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Unimate SLA
Published 2002
Packaging Bulk
Operating Temperature -20°C~120°C
Physical
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 6 Weeks
