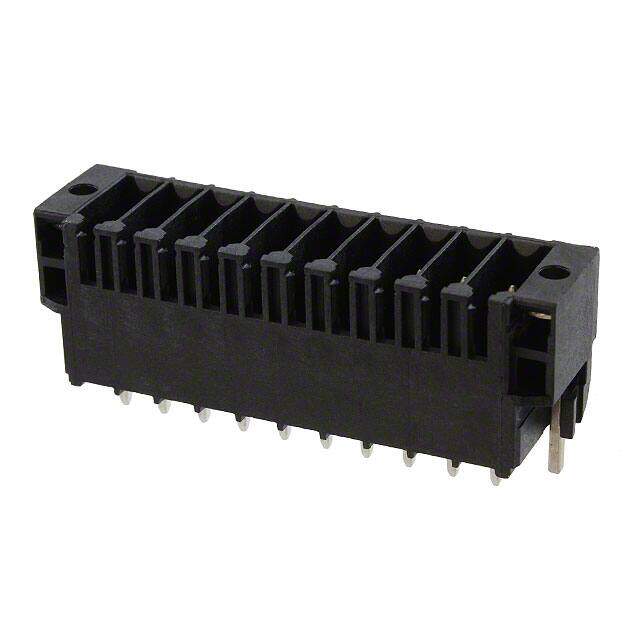

1290310000 image
Favorite
1290310000 image
Favorite

1290310000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 20POS VERT 3.5MM
PDF
/
Buying Options
Total Price: USD $7.34
Unit Price: USD $7.3392
≥1 USD $7.3392
≥10 USD $6.28408
≥100 USD $5.391047
≥500 USD $5.104
≥1000 USD $4.625482
≥3000 USD $4.306482
Inventory: 65
Minimum: 1
-
+

Technical Details

Technical

Hole Diameter 1.3 mm
Current - IEC 13.4A
Header Orientation Vertical
Positions Per Level 10
Voltage - IEC 200V
Contact Mating Finish Tin
Current 10A
Number of Levels 2
Contact Tail Length 0.138 3.50mm
Voltage 150V
Termination Style Solder
Current Rating 10A
Insulation Height 0.559 14.20mm
Ingress Protection IP20
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 150V
Number of Rows 1
Color Black
Number of Positions 20
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Solder Retention
Series Omnimate S2C
Published 2012
Packaging Bulk
Operating Temperature -50°C~120°C

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0

Physical

Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 16 Weeks
