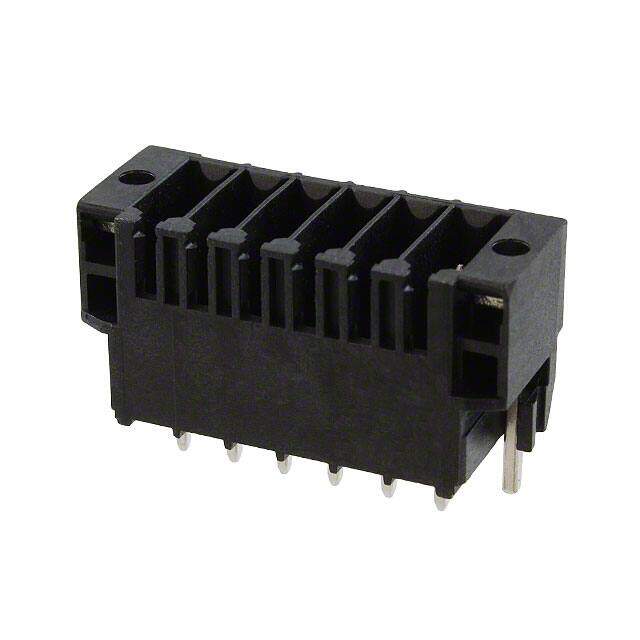

1290260000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 12POS VERT 3.5MM
PDF
/
Buying Options
Total Price: USD $12.08
Unit Price: USD $12.0821
≥1 USD $12.0821
≥10 USD $9.91325
≥100 USD $9.60355
≥500 USD $9.29385
≥1000 USD $8.98415
Inventory: 74
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Published 2012
Series Omnimate S2C
Feature Mating Flange, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Black
Number of Rows 1
Voltage - Rated 150V
Pitch 0.138 3.50mm
Ingress Protection IP20
Insulation Height 0.559 14.20mm
Current Rating 10A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.138 3.50mm
Number of Levels 2
Current 10A
Contact Mating Finish Tin
Voltage - IEC 200V
Positions Per Level 6
Header Orientation Vertical
Current - IEC 13.4A
Hole Diameter 1.3 mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
