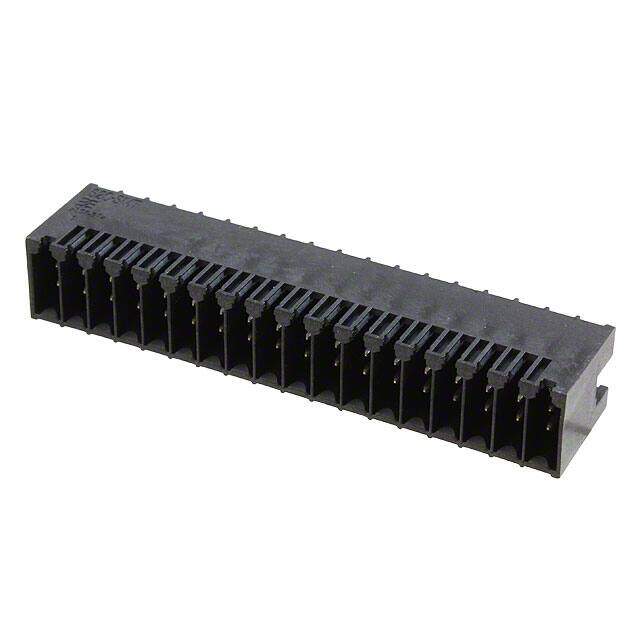

1289440000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 36POS 90DEG 3.5MM
PDF
/
Inventory: 9687
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Hole Diameter 1.3 mm
Current - IEC 13.4A
Header Orientation 90°, Right Angle
Positions Per Level 18
Voltage - IEC 200V
Contact Mating Finish Tin
Current 10A
Number of Levels 2
Contact Tail Length 0.126 3.20mm
Voltage 150V
Termination Style Solder
Current Rating 10A
Insulation Height 0.425 10.80mm
Ingress Protection IP20
Pitch 0.138 3.50mm
Voltage - Rated 150V
Number of Rows 1
Color Black
Number of Positions 36
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Omnimate S2C
Published 2012
Packaging Bulk
Operating Temperature -50°C~120°C

Physical

Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
