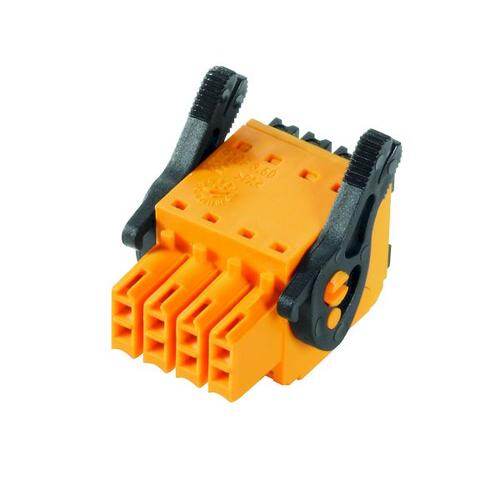

1278170000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 28POS STR 3.5MM
PDF
/
Inventory: 3647
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Housing Material Polyamide (PA66), Nylon 6/6, Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Series Omnimate B2CF
Feature Ejector Latches
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 28
Color Orange
Number of Rows 1
Voltage - Rated 300V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Ingress Protection IP20
Insulation Height 0.598 15.19mm
Current Rating 10A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 2
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-26 AWG
Current - UL 9.5A
Voltage - IEC 320V
Positions Per Level 14
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Current - IEC 13.4A
Stripping Length 10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
