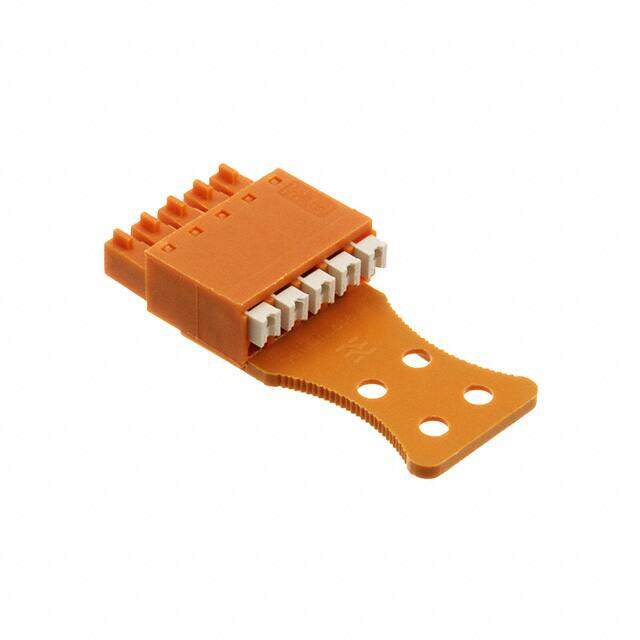

1235790000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Socket
PDF
/
Buying Options
Total Price: USD $7.25
Unit Price: USD $7.2512
≥1 USD $7.2512
≥10 USD $5.72
≥100 USD $5.441216
≥500 USD $4.938912
≥1000 USD $4.74364
≥3000 USD $4.185597
Inventory: 167
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Housing Material Polyamide (PA66), Nylon 6/6, Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Series Omnimate BC
Feature Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 5
Color Orange
Voltage - Rated 300V
Pitch 0.150 3.81mm
Ingress Protection IP20
Insulation Height 0.492 12.50mm
Current Rating 17.5A
Termination Style Screwless - Leg Spring, Push-In Spring
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 16-26 AWG
Current - UL 10A
Voltage - IEC 320V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 9mm
Stripping Length 8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
