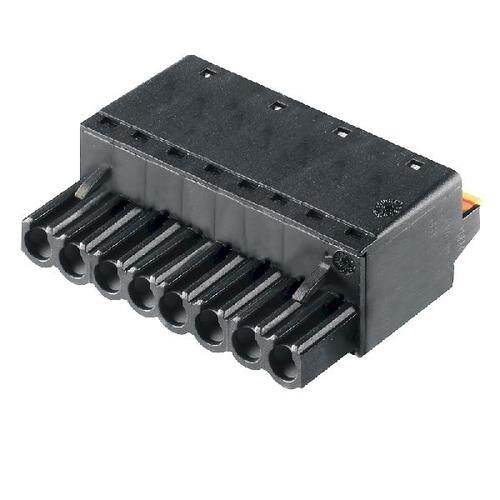

1212350000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Plug
PDF
/
Inventory: 1926
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate SL
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Black
Pitch 0.138 3.50mm
Ingress Protection IP10
Insulation Height 0.437 11.10mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 320V
Header Orientation Vertical
Current - IEC 17A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
