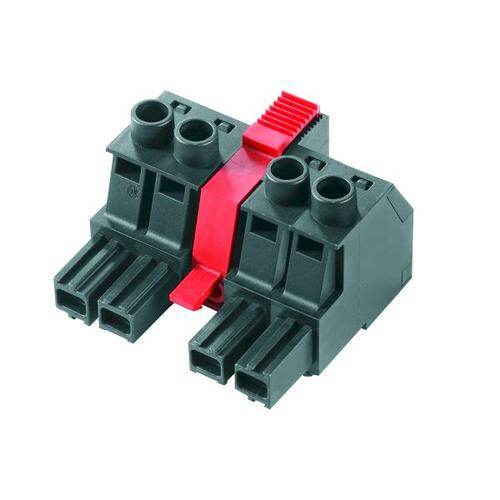

1156620000 image
Favorite
1156620000 image
Favorite

1156620000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Socket
PDF
/
Inventory: 959
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Stripping Length 12mm
Screw Size M4
Current - IEC 78.3A
Wire Gauge or Range - mm2 0.2-16mm2
Plug Wire Entry 180°
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Voltage - IEC 1kV
Current - UL 60A
Wire Gauge or Range - AWG 4-22 AWG
Voltage - UL 600V
Contact Mating Finish Silver
Number of Levels 1
Approval Agency cURus
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Current Rating 54A
Insulation Height 1.417 35.99mm
Ingress Protection IP20
Pitch 0.400 10.16mm
Voltage - Rated 300V
Color Black
Number of Positions 3
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Latch Lock
Series Omnimate BU
Packaging Bulk
Operating Temperature -50°C~130°C

Physical

Housing Material Polyamide (PA), Nylon, Glass Filled
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 11 Weeks
