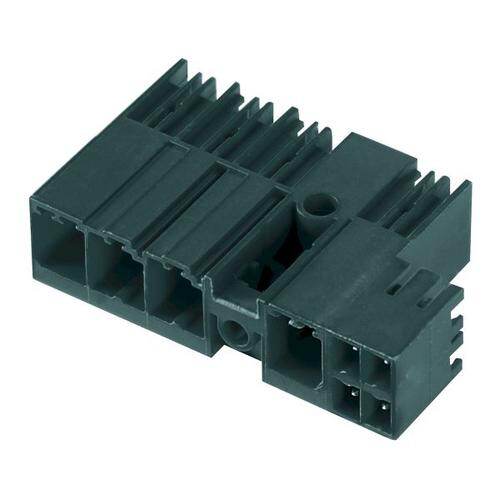

1156240000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Socket
PDF
/
Inventory: 8689
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -50°C~130°C
Packaging Bulk
Series Omnimate SV
Feature Latch Holder
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 9
Color Black
Number of Rows 1
Voltage - Rated 600V
Pitch 0.300 7.62mm
Ingress Protection IP20
Insulation Height 0.449 11.40mm
Current Rating 41A
Termination Style Solder
Approval Agency CSA, cURus
Contact Tail Length 0.138 3.50mm
Number of Levels Hybrid
Number of Poles 3
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 33A
Voltage - IEC 1kV
Positions Per Level 9 (3 Power + 6 Signal)
Header Orientation 90°, Right Angle
Hole Diameter 1.3 mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
