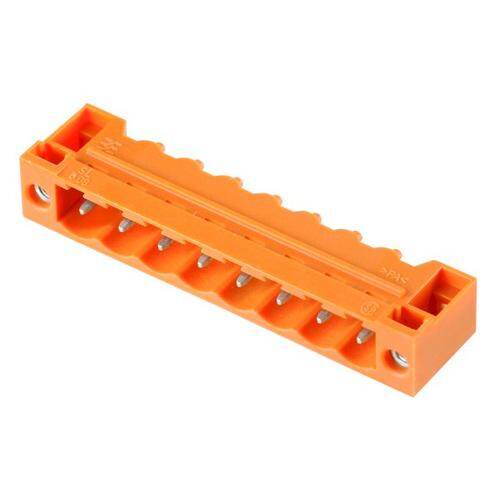

1150130000 image
Favorite
1150130000 image
Favorite

1150130000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Socket
PDF
/
Inventory: 1527
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon, Glass Filled

Technical

Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate SL
Feature Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Black
Pitch 0.200 5.08mm
Insulation Height 0.335 8.51mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Current - UL 18.5A
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 24A

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
