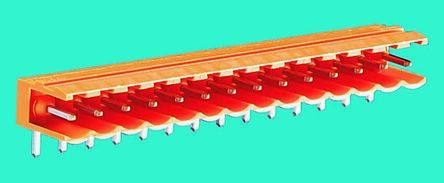

1146990000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Socket
PDF
/
Inventory: 8146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2011
Series Omnimate SL
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 14
Color Orange
Voltage - Rated 300V
Pitch 0.200 5.08mm
Insulation Height 0.335 8.51mm
Current Rating 24A
Termination Style Solder
Approval Agency cURus
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 18.5A
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Hole Diameter 1.3 mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
