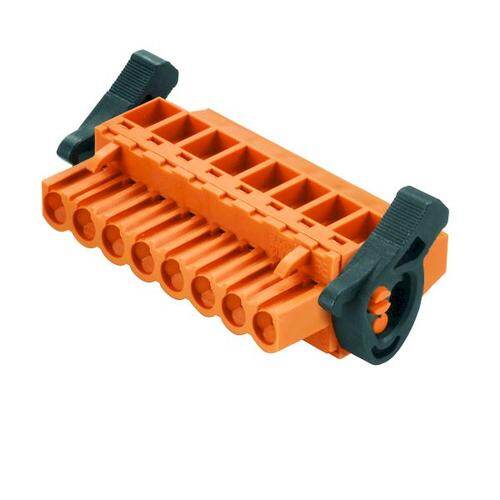

1087390000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Header
PDF
/
Inventory: 2001
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate BL
Feature Ejector Latches
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 16
Color Orange
Voltage - Rated 300V
Pitch 0.200 5.08mm
Insulation Height 1.160 29.46mm
Current Rating 15A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency UR
Number of Levels 1
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 20A
Voltage - IEC 400V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-4mm2
Wire Strip Length 7mm
Current - IEC 23A
Screw Size M2.5
Stripping Length 7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
