1060880000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

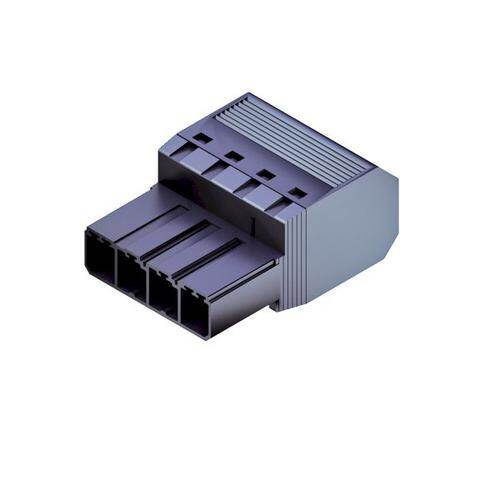

Terminal Block Socket
PDF
/
Buying Options
Total Price: USD $9.22
Unit Price: USD $9.2224
≥1 USD $9.2224
≥10 USD $8.11536
Inventory: 87
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -50°C~125°C
Packaging Bulk
Series Omnimate SV
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Blade Pins
Number of Positions 6
Color Black
Voltage - Rated 600V
Pitch 0.300 7.62mm
Ingress Protection IP20
Insulation Height 0.790 20.07mm
Current Rating 35A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CSA, cURus
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 600V
Wire Gauge or Range - AWG 10-24 AWG
Voltage - IEC 1kV
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-10mm2
Current - IEC 41A
Stripping Length 12mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
