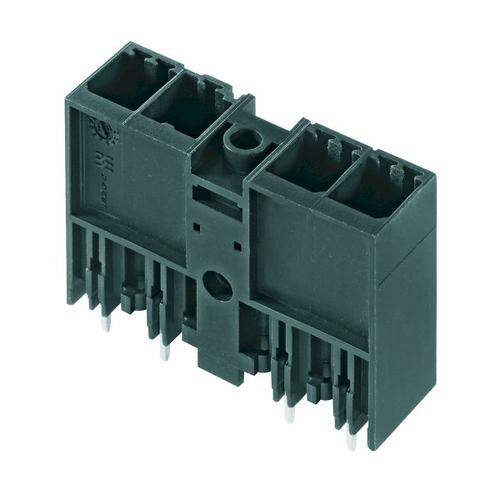

1048420000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Socket
PDF
/
Inventory: 7926
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -50°C~130°C
Packaging Bulk
Series Omnimate SV
Feature Latch Holder
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Blade Pins, Shrouded (4 Side)
Number of Positions 3
Color Black
Voltage - Rated 300V
Pitch 0.300 7.62mm
Ingress Protection IP20
Insulation Height 1.114 28.30mm
Current Rating 35A
Termination Style Solder
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Contact Mating Finish Tin
Current - UL 40.5A
Voltage - IEC 1kV
Header Orientation Vertical
Current - IEC 41A
Hole Diameter 1.3 mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
