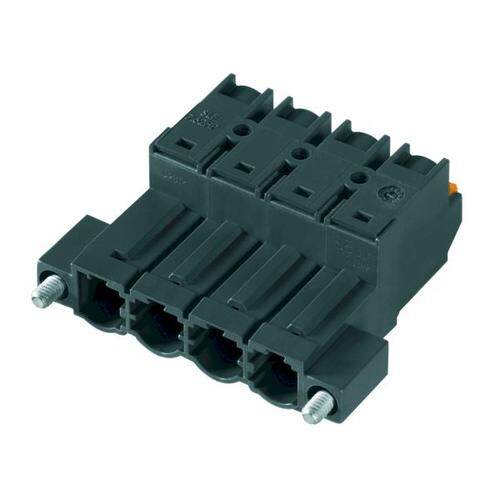

1043680000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Header
PDF
/
Inventory: 1588
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate SL
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Male Pins
Number of Positions 3
Color Black
Voltage - Rated 600V
Pitch 0.300 7.62mm
Ingress Protection IP20
Insulation Height 0.593 15.06mm
Current Rating 23.8A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CSA, cURus
Number of Levels 1
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-20 AWG
Current - UL 20A
Voltage - IEC 1kV
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-2.5mm2
Wire Strip Length 10mm
Current - IEC 24A
Stripping Length 10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
