1043240000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

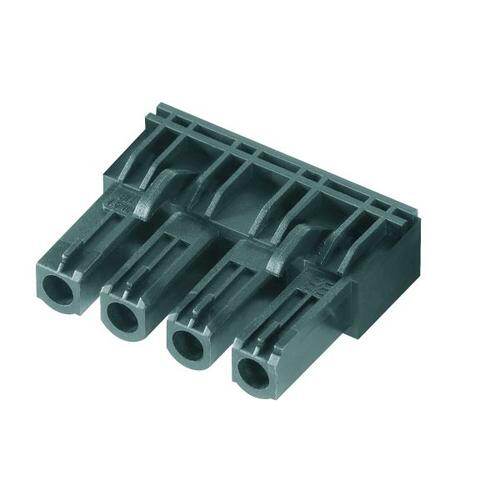

Terminal Block Header
PDF
/
Buying Options
Total Price: USD $3.52
Unit Price: USD $3.52
≥1 USD $3.52
≥10 USD $2.68488
≥100 USD $2.51504
≥500 USD $2.187011
≥1000 USD $2.016872
≥3000 USD $1.822489
Inventory: 239
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Hole Diameter 1.3 mm
Current - IEC 24A
Header Orientation 90°, Right Angle
Voltage - IEC 630V
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.126 3.20mm
Approval Agency CSA, cURus
Termination Style Solder
Current Rating 20A
Insulation Height 0.409 10.40mm
Ingress Protection IP20
Pitch 0.300 7.62mm
Voltage - Rated 300V
Color Black
Number of Positions 3
Type Header, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches
Series Omnimate BL
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Polyamide (PA), Nylon, Glass Filled
Insulation Material Nylon
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 16 Weeks
