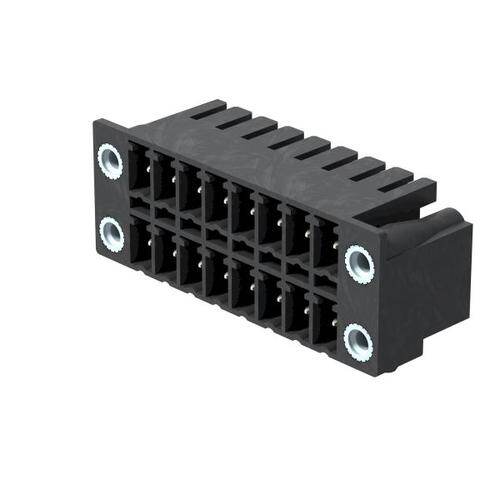

1039730000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Socket
PDF
/
Inventory: 6980
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Series Omnimate SC
Feature Board Guide, Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 30
Color Black
Voltage - Rated 300V
Pitch 0.150 3.81mm
Ingress Protection IP20
Insulation Height 0.598 15.19mm
Current Rating 12.2A
Termination Style Solder
Approval Agency cURus
Contact Tail Length 0.126 3.20mm
Number of Levels 2
Contact Mating Finish Tin
Current - UL 10A
Voltage - IEC 320V
Positions Per Level 15
Header Orientation 90°, Right Angle
Current - IEC 17.5A
Hole Diameter 1.3 mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
