1035970000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

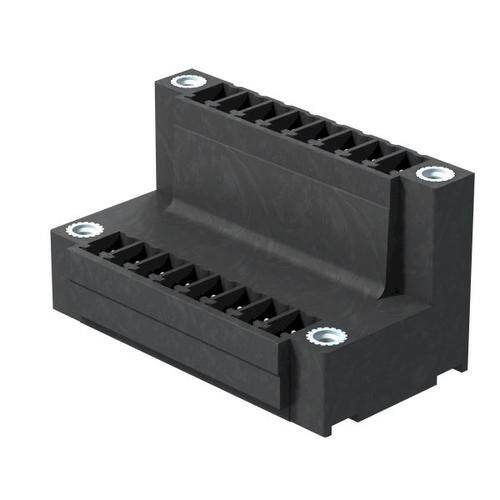

Terminal Block Socket
PDF
/
Inventory: 3112
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Hole Diameter 1.3 mm
Current - IEC 17.5A
Header Orientation Vertical
Positions Per Level 4
Voltage - IEC 320V
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 2
Contact Tail Length 0.126 3.20mm
Approval Agency cURus
Termination Style Solder
Current Rating 10A
Insulation Height 0.862 21.89mm
Ingress Protection IP20
Pitch 0.150 3.81mm
Voltage - Rated 300V
Color Black
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series Omnimate SC
Packaging Bulk
Operating Temperature -50°C~120°C
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
