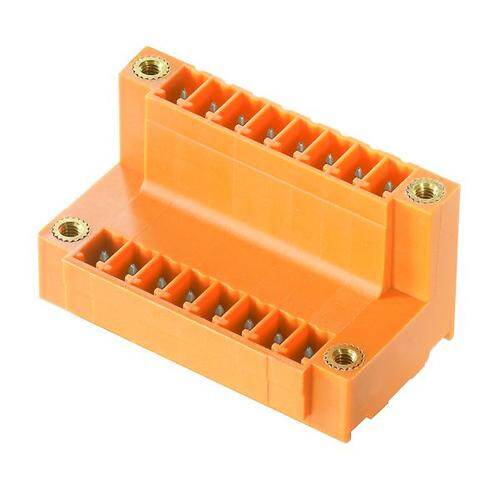

1035080000 image
Favorite
1035080000 image
Favorite

1035080000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Socket
PDF
/
Inventory: 7666
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Hole Diameter 1.2 mm
Header Orientation Vertical
Positions Per Level 11
Voltage - IEC 320V
Current - UL 10A
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 2
Contact Tail Length 0.126 3.20mm
Approval Agency cURus
Termination Style Solder
Current Rating 17.5A
Insulation Height 0.862 21.89mm
Ingress Protection IP20
Pitch 0.150 3.81mm
Voltage - Rated 300V
Color Orange
Number of Positions 22
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series Omnimate SC
Packaging Bulk
Operating Temperature -50°C~120°C

Physical

Housing Material Polyamide (PA), Nylon, Glass Filled
Insulation Material Nylon
Mounting Type Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
