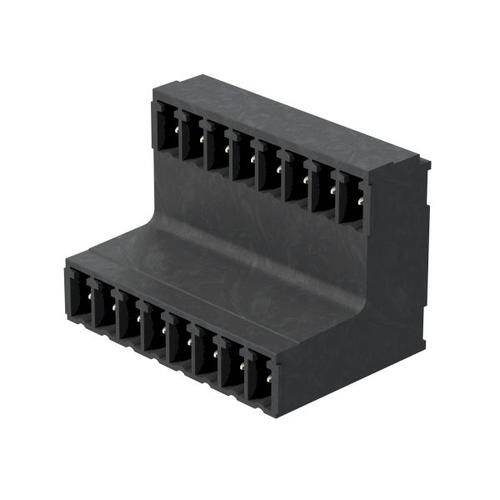

1033610000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Header
PDF
/
Inventory: 4372
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Series Omnimate SC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 26
Color Black
Pitch 0.150 3.81mm
Ingress Protection IP20
Insulation Height 0.894 22.71mm
Termination Style Solder
Contact Tail Length 0.126 3.20mm
Number of Levels 2
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 10A
Voltage - IEC 320V
Positions Per Level 13
Header Orientation 90°, Right Angle
Current - IEC 17.5A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
