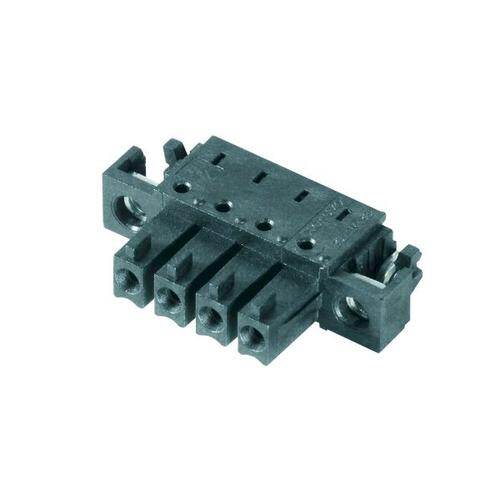

1028740000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Plug
PDF
/
Inventory: 937
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate BC
Feature Mating Flange, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
Pitch 0.150 3.81mm
Ingress Protection IP20
Insulation Height 0.264 6.70mm
Current Rating 17.5A
Termination Style Solder
Approval Agency CSA, cURus
Voltage 300V
Contact Tail Length 0.059 1.50mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 320V
Number of Ways 4
Header Orientation 90°, Right Angle
Current - IEC 17.5A
Hole Diameter 1 mm
Number of Positions Per Level 4
Fastening Method PLUG IN
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
