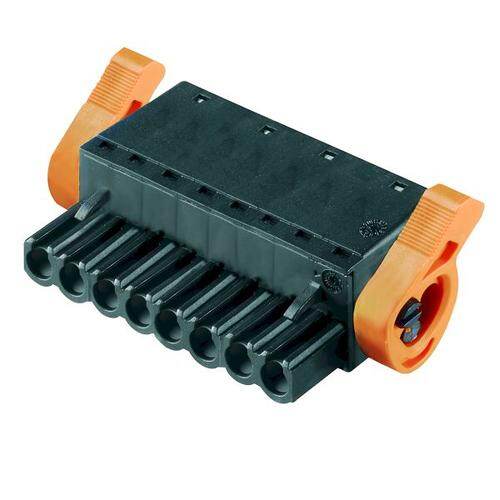

1014810000 image
Favorite
1014810000 image
Favorite

1014810000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 9POS STR 5.08MM
PDF
/
Inventory: 5182
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Termination Screwless
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
Pitch 0.200 5.08mm
Ingress Protection IP20
Insulation Height 0.559 14.20mm
Current Rating 19A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CSA, cURus
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 18.5A
Voltage - IEC 400V
Number of Ways 9
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Current - IEC 24A
Number of Positions Per Level 9
Stripping Length 10mm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Ejector Latches, Retention Latches (Non-Wire Side)
Series Omnimate BL
Published 2009
Packaging Box
Operating Temperature -50°C~100°C

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
