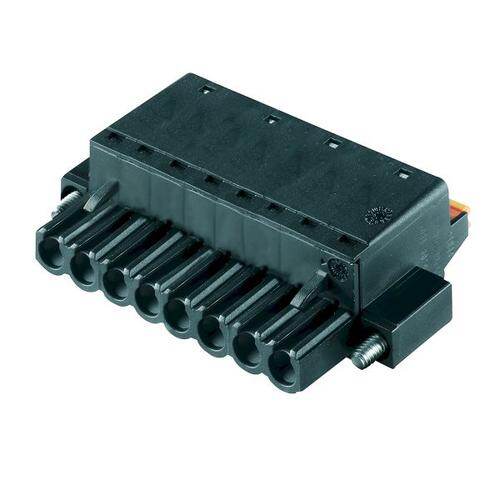

1013060000 image
Favorite
1013060000 image
Favorite

1013060000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 24POS STR 5.08MM
PDF
/
Inventory: 3635
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)

Technical

Operating Temperature -50°C~100°C
Packaging Box
Published 2009
Series Omnimate BL
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
Additional Feature STANDARD: UL 94V-0, PBT
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Ingress Protection IP20
Insulation Height 0.559 14.20mm
Current Rating 19A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CSA, cURus
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 18.5A
Voltage - IEC 400V
Number of Ways 24
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Current - IEC 24A
Number of Positions Per Level 24
Stripping Length 10mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
