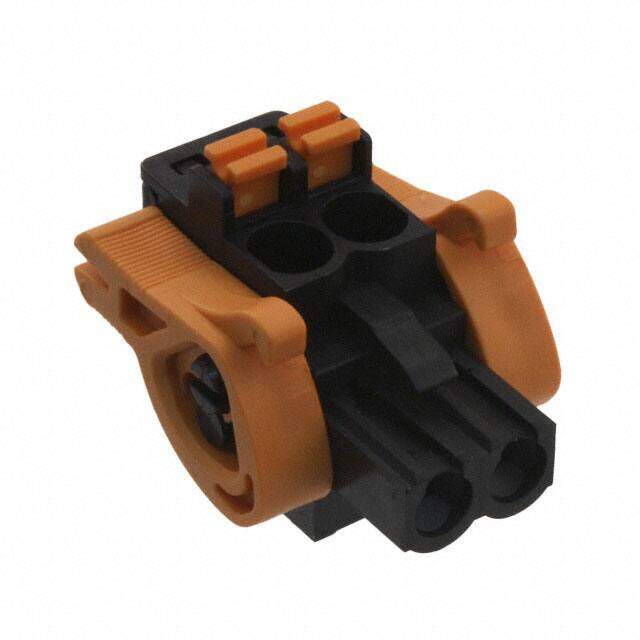

1000410001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS 5.08MM
PDF
/
Buying Options
Total Price: USD $1.85
Unit Price: USD $1.850543
≥1 USD $1.850543
≥10 USD $1.70661
≥100 USD $1.542112
≥500 USD $1.43931
≥1000 USD $1.3365
≥3000 USD $1.310795
Inventory: 447
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Box
Published 2010
Series Omnimate BL
Feature Ejector Latches, Retention Latches (Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
Additional Feature STANDARD: UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Ingress Protection IP20
Insulation Height 0.813 20.65mm
Current Rating 19A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CSA, cURus
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 18.5A
Voltage - IEC 400V
Number of Ways 2
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Current - IEC 24A
Number of Positions Per Level 2
Stripping Length 10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
