282824-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

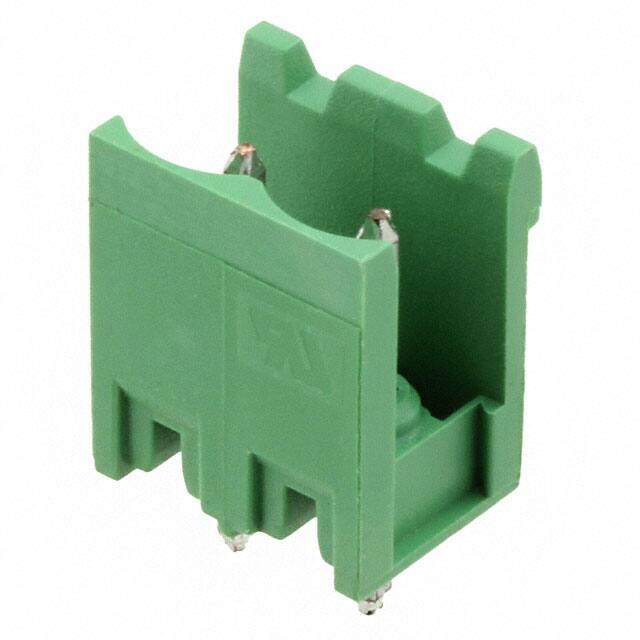

TE CONNECTIVITY / BUCHANAN 282824-2 TERMINAL BLOCK,HEADER, 5.08 MM, 2WAY
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.566493
≥1 USD $0.566493
≥10 USD $0.534431
≥100 USD $0.504175
≥500 USD $0.475641
≥1000 USD $0.448715
Inventory: 6069
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Number of Pins 2
Housing Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~110°C
Packaging Bulk
Published 2002
Series Buchanan
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Straight
Depth 8.35mm
Insulation Height 0.472 12.00mm
Current Rating 15A
Termination Style Solder
Voltage - Rated AC 300V
Shrouding Yes
Number of Contacts 2
Housing Color Green
Voltage 300V
Contact Tail Length 0.138 3.50mm
ELV Compliant
Max Voltage Rating (AC) 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Positions Per Level 2
Header Orientation Vertical
Number of Positions Per Level 2
Dimensions
Length 10.56mm
Length - Tail 3.5mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
