5452734
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

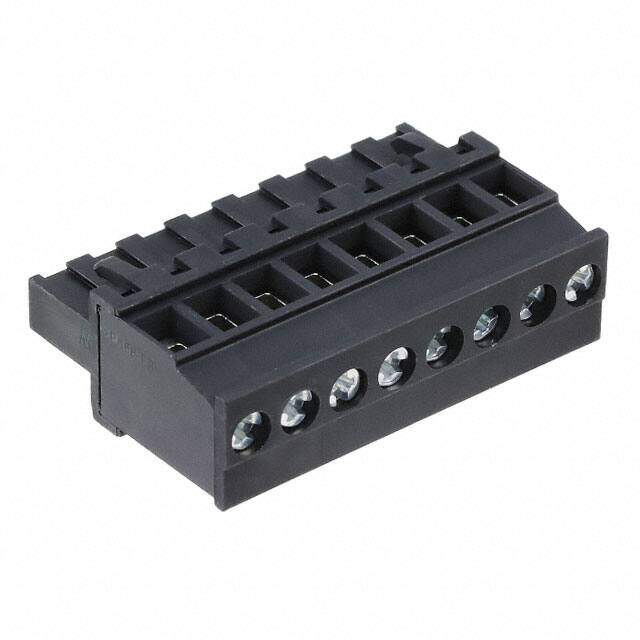

TERM BLOCK PLUG 8POS 90DEG 5MM
PDF
/
Inventory: 1132
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Screw Size M3
Number of Positions Per Level 8
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Positions Per Level 8
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 320V
Current - UL 12A
Wire Gauge or Range - AWG 12-30 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 12A
Number of Levels 1
Voltage 300V
Termination Style Screw
Insulation Height 1.024 26.01mm
Pitch 0.197 5.00mm
Color Black
Number of Positions 8
Type Plug, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Retention Latches (Wire Side)
Series BCVP
Published 2016
Packaging Bulk
Physical
Number of Pins 8
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
