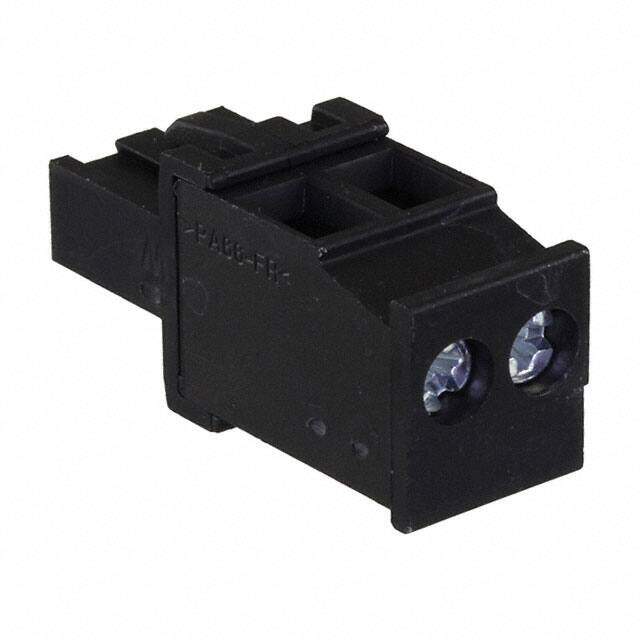

5452728
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS 90DEG 5MM
PDF
/
Inventory: 1176
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Number of Pins 2
Technical
Packaging Bulk
Published 2016
Series BCVP
Feature Retention Latches (Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Number of Positions 2
Color Black
Pitch 0.197 5.00mm
Insulation Height 1.024 26.01mm
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 12A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 12A
Voltage - IEC 320V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level 2
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Number of Positions Per Level 2
Screw Size M3
Compliance
RoHS Status RoHS Compliant
