5452235
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

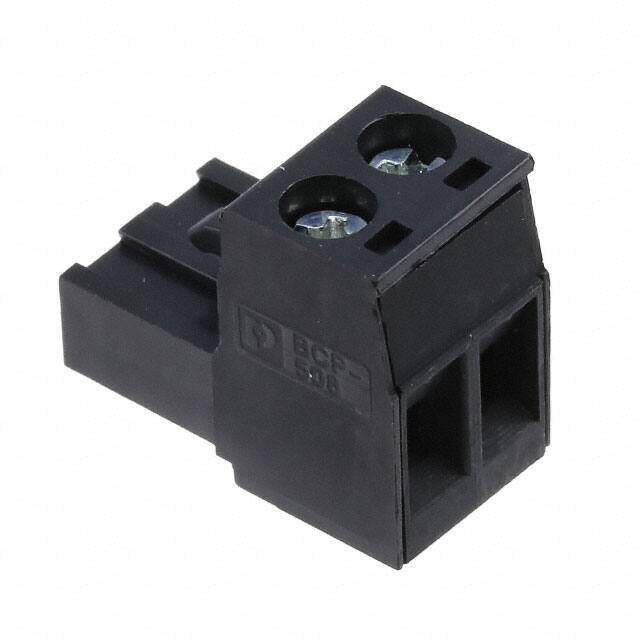

TERM BLOCK PLUG 2POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.941964
≥1 USD $1.941964
≥10 USD $1.83204
≥100 USD $1.728337
≥500 USD $1.63051
≥1000 USD $1.538216
Inventory: 6119
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2016
Series BCP
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 2
Color Black
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 320V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 180°
Wire Strip Length 7mm
Current - IEC 12A
Compliance
RoHS Status RoHS Compliant
