RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

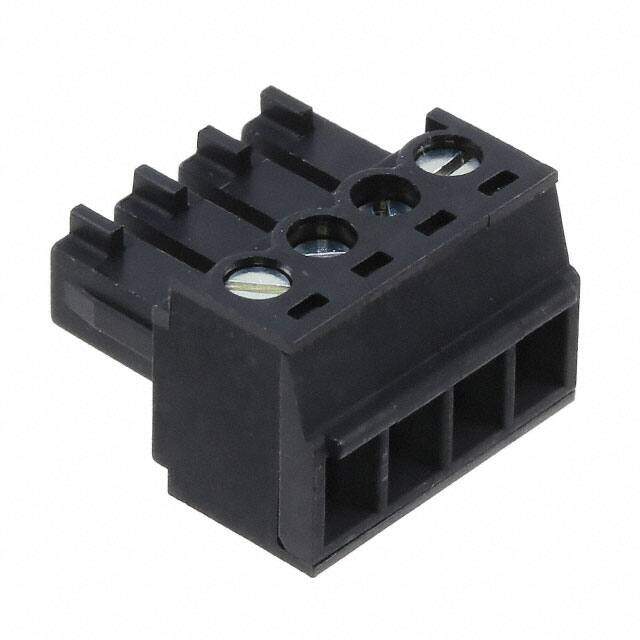

Description TERM BLOCK PLUG 4POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $1.49
Unit Price: USD $1.4872
≥1 USD $1.4872
Inventory: 61
Minimum: 1
-
+

Technical Details

Technical

Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw
Reach Compliance Code not_compliant
Insulation Height 0.437 11.10mm
Pitch 0.150 3.81mm
Color Black
Number of Positions 4
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series BCP
Published 2015
Packaging Bulk

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 9 Weeks
