5452179
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

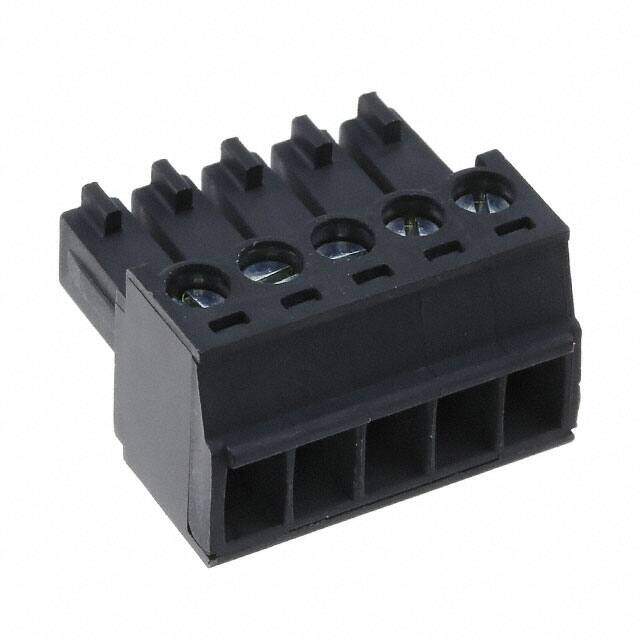

TERM BLOCK PLUG 5POS STR 3.5MM
PDF
/
Buying Options
Total Price: USD $6.74
Unit Price: USD $6.736023
≥1 USD $6.736023
≥10 USD $6.354738
≥100 USD $5.995041
≥500 USD $5.655694
≥1000 USD $5.33556
Inventory: 5781
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2016
Series BCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 5
Color Black
Pitch 0.138 3.50mm
Insulation Height 0.437 11.10mm
Reach Compliance Code not_compliant
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
