RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

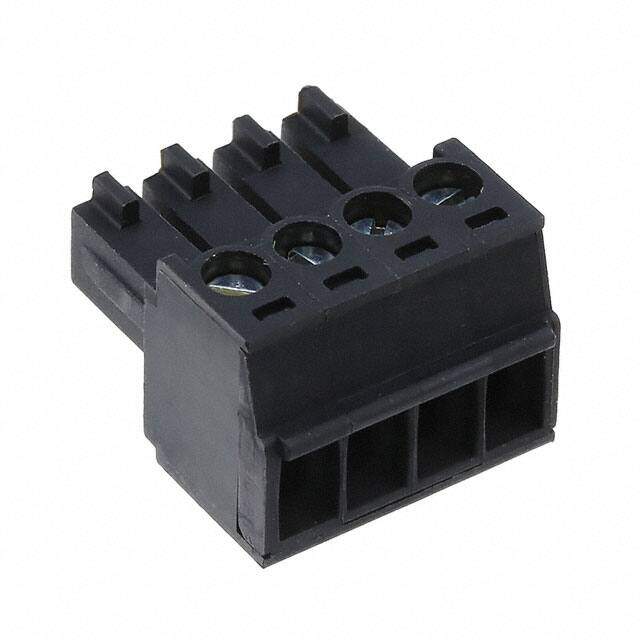

Description Conn Terminal Block RCP 4 POS 3.5mm Screw RA Cable Mount 8A
PDF
/
Buying Options
Total Price: USD $2.07
Unit Price: USD $2.068
≥1 USD $2.068
≥10 USD $1.97736
≥100 USD $1.92368
≥500 USD $1.79784
≥1000 USD $1.654013
≥3000 USD $1.623054
Inventory: 158
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 14.7mm

Technical

Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Termination Style Screw
Reach Compliance Code not_compliant
Insulation Height 0.437 11.10mm
Depth 16.1mm
Orientation Right Angle
Pitch 0.138 3.50mm
Color Black
Number of Positions 4
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series BCP
Published 2016
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 9 Weeks
