5452132
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

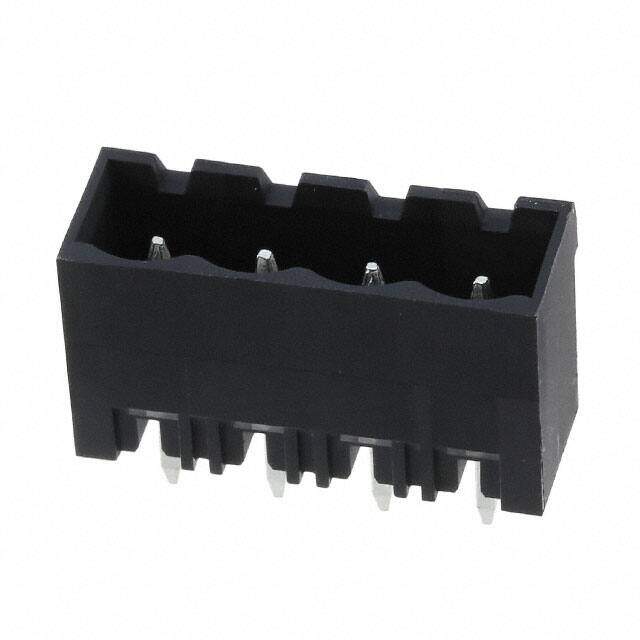

BCH RoHS Compliant 2016 Tin Terminal Block Header, Male Pins, Shrouded (4 Side) Vertical 15A 300V 0.472 12.00mm
PDF
/
Inventory: 1162
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Packaging Bulk
Published 2016
Series BCH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Black
Pitch 0.197 5.00mm
Insulation Height 0.472 12.00mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 320V
Header Orientation Vertical
Current - IEC 12A
Compliance
RoHS Status RoHS Compliant
