5452114
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

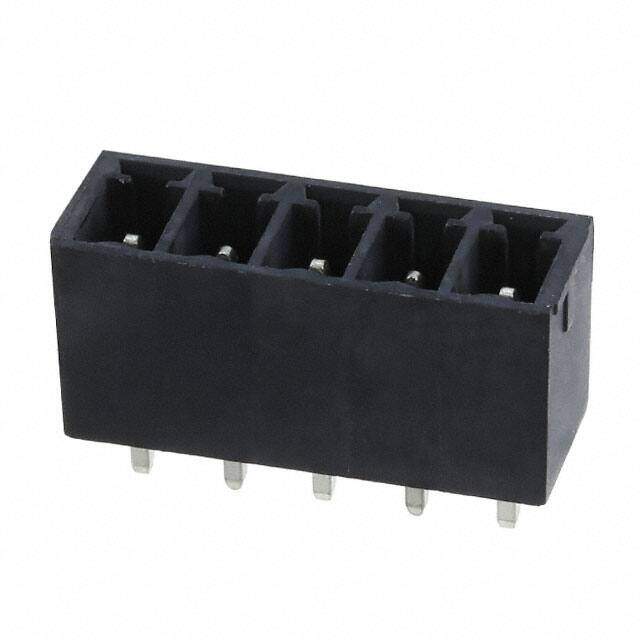

TERM BLOCK HDR 5POS VERT 3.81MM
PDF
/
Inventory: 1162
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Header Orientation Vertical
Voltage - IEC 160V
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Insulation Height 0.362 9.20mm
Pitch 0.150 3.81mm
Color Black
Number of Positions 5
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series BCH
Published 2016
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
