5452050
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

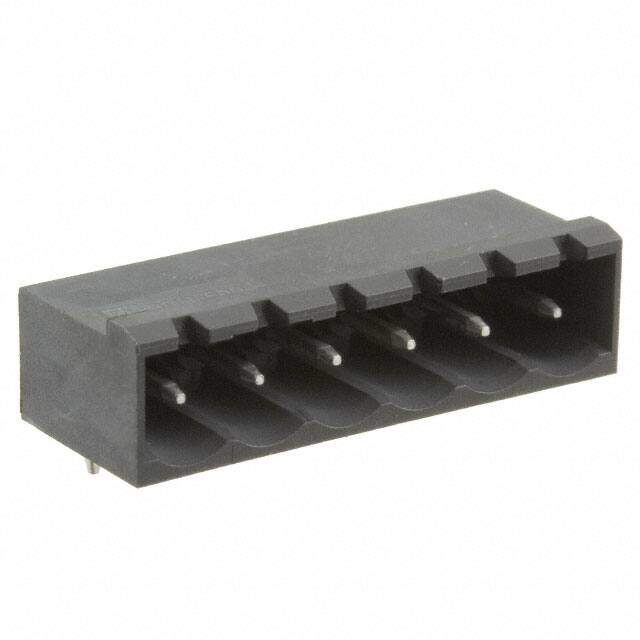

BCH RoHS Compliant 2016 Tin Terminal Block Header, Male Pins, Shrouded (4 Side) 90° Right Angle 15A 300V 0.339 8.61mm
PDF
/
Buying Options
Total Price: USD $2.08
Unit Price: USD $2.077286
≥1 USD $2.077286
≥10 USD $1.959703
≥100 USD $1.848778
≥500 USD $1.744135
≥1000 USD $1.645402
Inventory: 3561
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Packaging Bulk
Published 2016
Series BCH
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Black
Pitch 0.197 5.00mm
Insulation Height 0.339 8.61mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 320V
Header Orientation 90°, Right Angle
Current - IEC 12A
Compliance
RoHS Status RoHS Compliant
