5452010
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

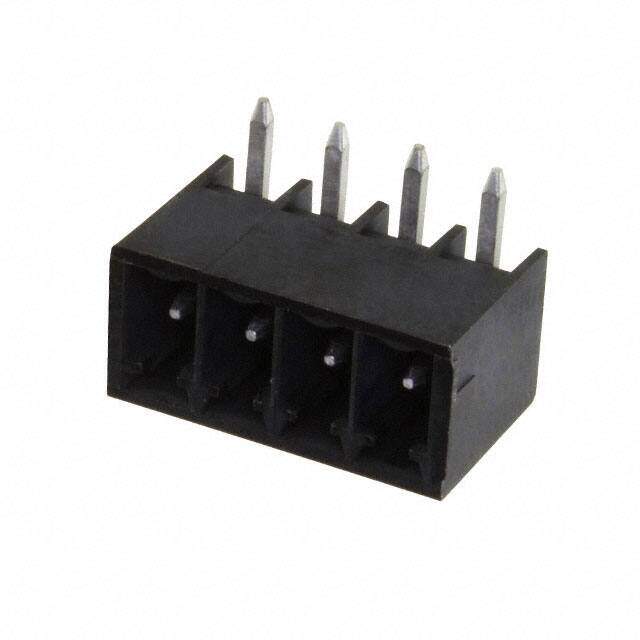

Conn Wire to Board HDR 4 POS 3.5mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.0032
≥1 USD $1.0032
Inventory: 30
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 15.4mm
Technical
Header Orientation 90°, Right Angle
Voltage - IEC 160V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Insulation Height 0.285 7.25mm
Depth 9.2mm
Orientation Right Angle
Pitch 0.138 3.50mm
Color Black
Number of Positions 4
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series BCH
Published 2016
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
