5451417
RoHS
/
Package 200
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

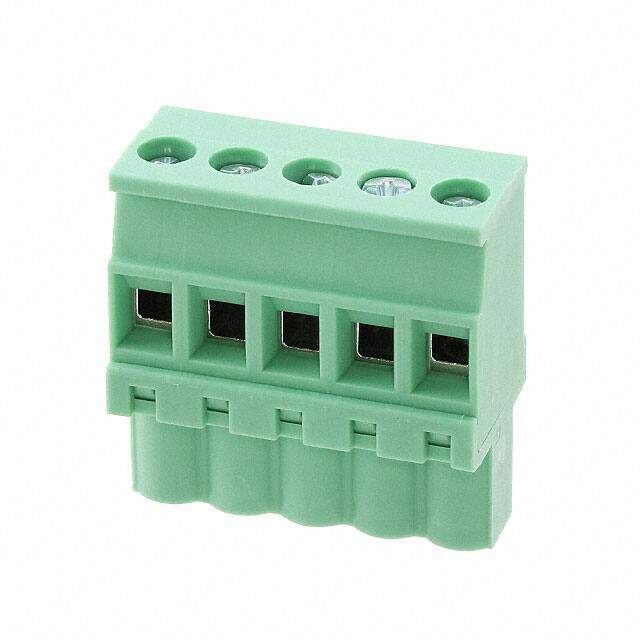

Pluggable Terminal Blocks BCVP-508W- 5 GN 5.08 MM PLUG
PDF
/
Inventory: 1261
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 270°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 12A
Number of Levels 1
Voltage 300V
Termination Style Screw
Pitch 0.200 5.08mm
Color Green
Number of Positions 5
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series BCVP
Published 2014
Packaging Bulk
Physical
Weight 10.399994g
Housing Material Polyamide (PA), Nylon
Package / Case 200
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 3 Weeks
