RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

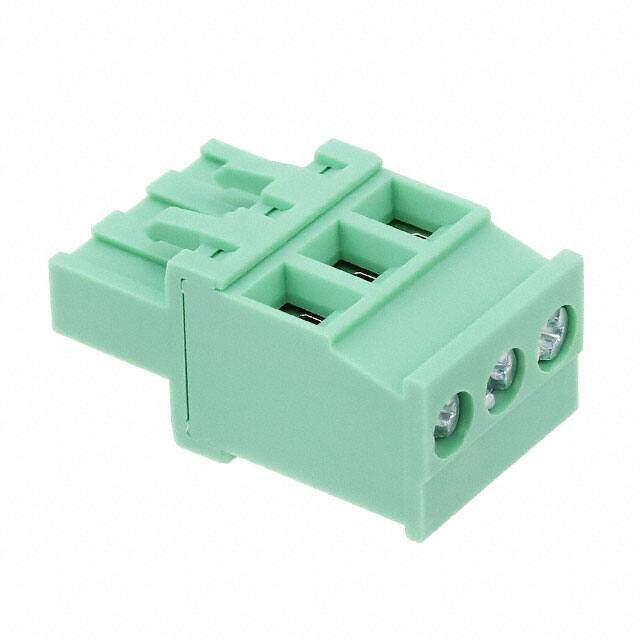

Description TERM BLOCK PLUG 3POS 5.08MM
PDF
/
Inventory: 1180
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 12A
Number of Levels 1
Voltage 300V
Termination Style Screw
Reach Compliance Code unknown
Insulation Height 1.024 26.01mm
Pitch 0.200 5.08mm
Color Green
Number of Positions 3
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Retention Latches (Wire Side)
Series BCVP
Published 2015
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 3 Weeks
