5448268
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

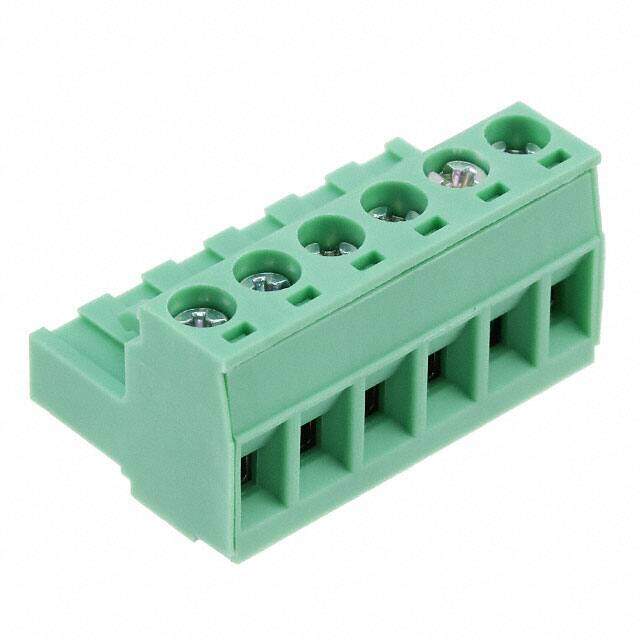

TERM BLOCK PLUG 6POS STR 5MM
PDF
/
Buying Options
Total Price: USD $5.64
Unit Price: USD $5.635825
≥1 USD $5.635825
≥10 USD $5.316821
≥100 USD $5.015864
≥500 USD $4.731952
≥1000 USD $4.464106
Inventory: 6201
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series BCP
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 6
Color Green
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
