Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

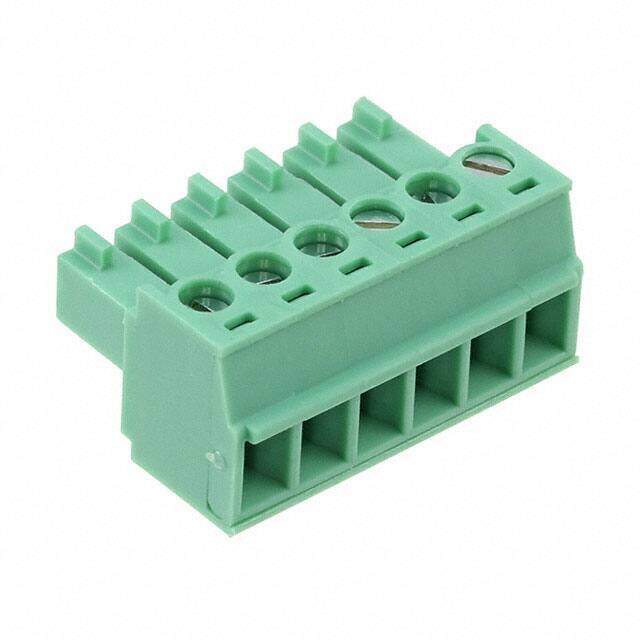

Description TERM BLOCK PLUG 6POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $6.05
Unit Price: USD $6.050285
≥1 USD $6.050285
≥10 USD $5.707814
≥100 USD $5.384735
≥500 USD $5.079934
≥1000 USD $4.79239
Inventory: 5190
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw
Reach Compliance Code not_compliant
Insulation Height 0.437 11.10mm
Pitch 0.150 3.81mm
Color Green
Number of Positions 6
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series BCP
Published 2015
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 9 Weeks
