5447382
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

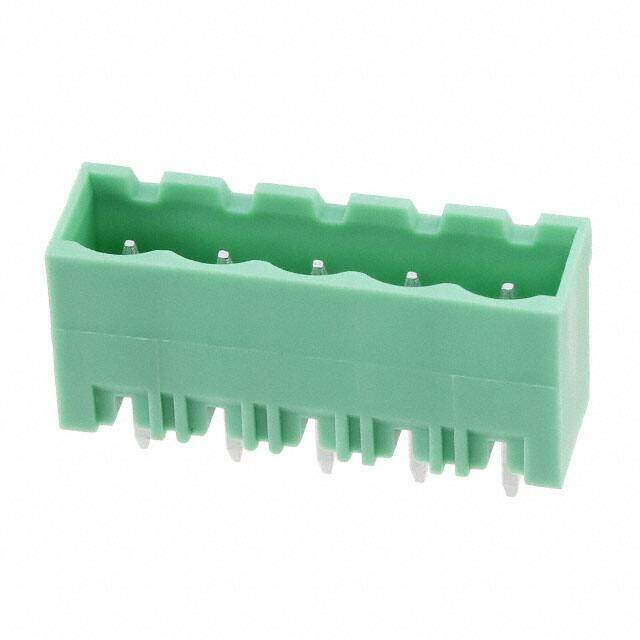

TERM BLOCK HDR 5POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $0.64
Unit Price: USD $0.6424
≥1 USD $0.6424
≥10 USD $0.61864
≥100 USD $0.601744
≥500 USD $0.56232
≥1000 USD $0.517334
≥3000 USD $0.507654
Inventory: 115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series BCH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature STANDARD: UL 94V-0, PA
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 5
Safety Approval CUL; UL
Header Orientation Vertical
Current - IEC 12A
Fastening Method CONNECTOR
Dimensions
Length 8.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
