5446752
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

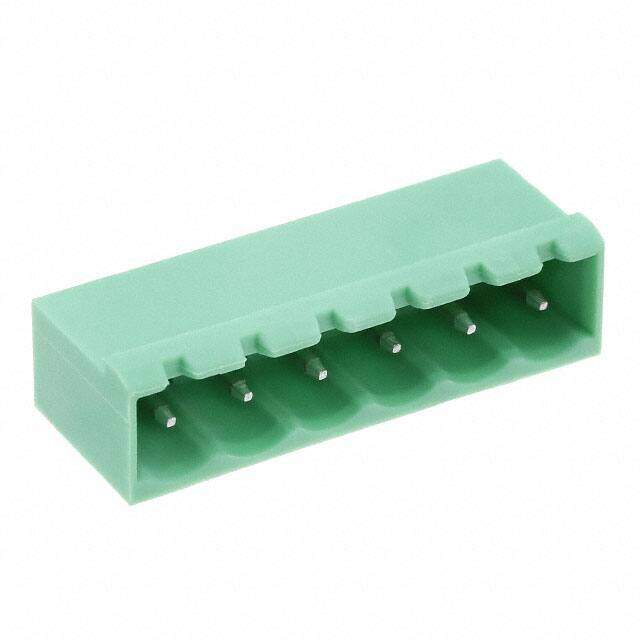

TERM BLOCK HDR 6POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.73216
≥100 USD $0.71192
≥500 USD $0.66528
≥1000 USD $0.612058
≥3000 USD $0.6006
Inventory: 340
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series BCH
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Pitch 0.200 5.08mm
Insulation Height 0.339 8.61mm
Termination Style Solder
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 12A
Number of Positions Per Level 6
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
