5446176
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

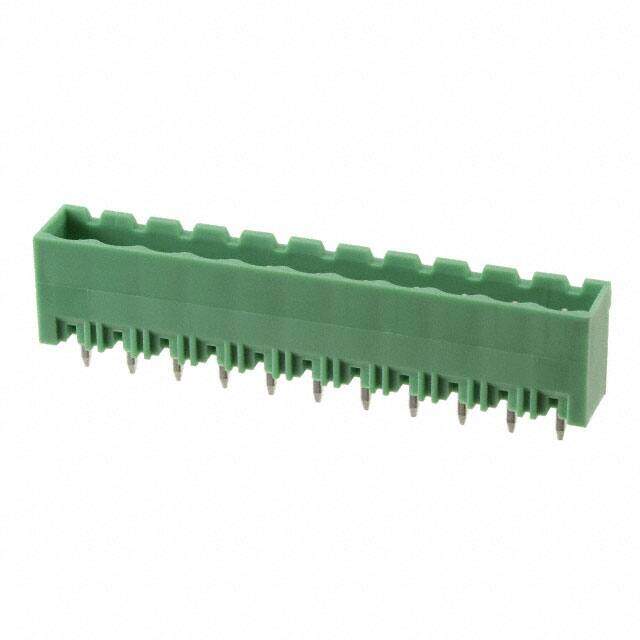

11 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) VerticalThrough Hole
PDF
/
Buying Options
Total Price: USD $7.5
Unit Price: USD $7.499285
≥1 USD $7.499285
≥200 USD $2.992099
≥500 USD $2.892319
≥1000 USD $2.843741
Inventory: 2638
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series BCH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Color Green
Pitch 0.197 5.00mm
Insulation Height 0.472 12.00mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 400V
Header Orientation Vertical
Current - IEC 12A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
