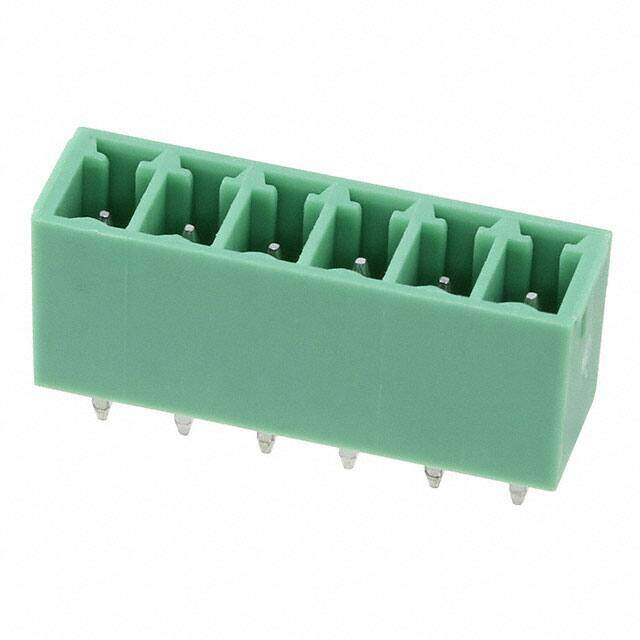

5444686 image
Favorite
5444686 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks BCH-381V- 6 GN 3.81 MM HEADER
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
Inventory: 192
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Header Orientation Vertical
Voltage - IEC 320V
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Insulation Height 0.362 9.20mm
Pitch 0.150 3.81mm
Color Green
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series BCH
Published 2015
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 9 Weeks
