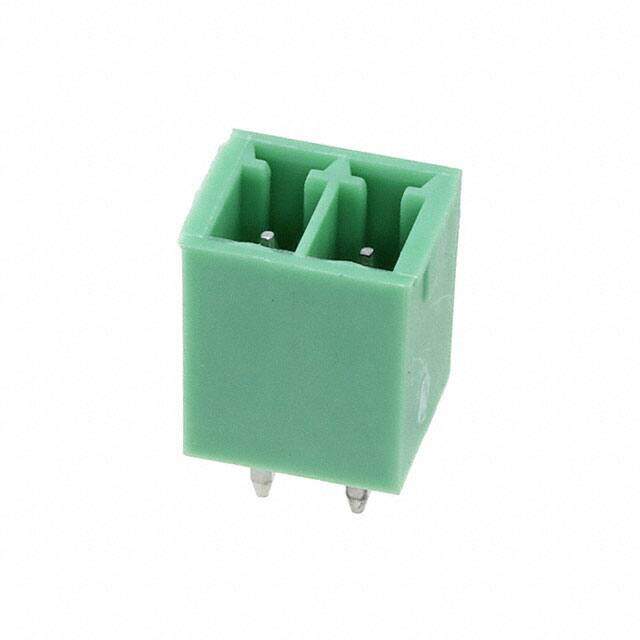

5444644
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 2POS VERT 3.81MM
PDF
/
Buying Options
Total Price: USD $0.25
Unit Price: USD $0.2464
≥1 USD $0.2464
Inventory: 222
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series BCH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Color Green
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Depth 7.4mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - IEC 320V
Header Orientation Vertical
Dimensions
Length 7.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
