RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

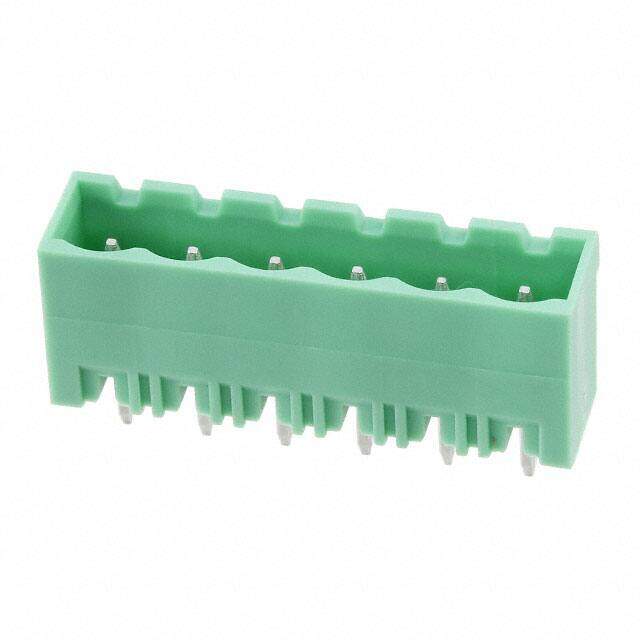

Description TERM BLOCK HDR 6POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.276
≥1 USD $1.276
Inventory: 272
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2014
Series BCH
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 400V
Header Orientation Vertical
Current - IEC 12A
Number of Positions Per Level 6

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
