5441375
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

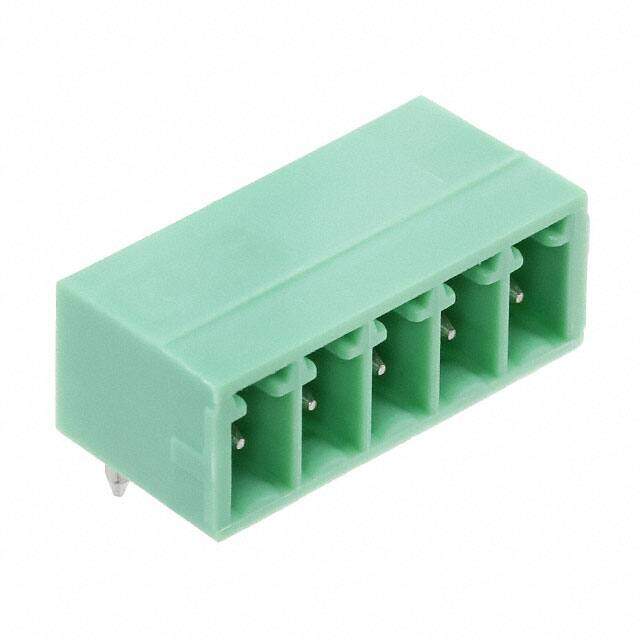

TERM BLOCK HDR 5POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $2.04
Unit Price: USD $2.044961
≥1 USD $2.044961
≥10 USD $1.929203
≥100 USD $1.820006
≥500 USD $1.716991
≥1000 USD $1.619806
Inventory: 9298
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2016
Series BCH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Color Green
Number of Rows 1
Additional Feature STANDARD: UL 94V-0, PA
Pitch 0.138 3.50mm
Insulation Height 0.285 7.25mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 320V
Number of Ways 5
Safety Approval CB; CUL; UL; VDE
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
