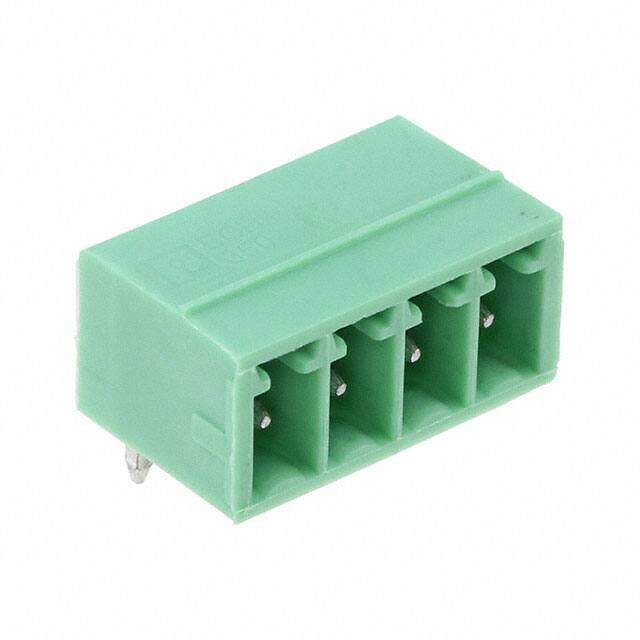

5441362
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 4POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.69696
≥100 USD $0.677952
≥500 USD $0.6336
≥1000 USD $0.582912
≥3000 USD $0.572
Inventory: 66
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle
Voltage - IEC 320V
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Insulation Height 0.285 7.25mm
Pitch 0.138 3.50mm
Color Green
Number of Positions 4
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series BCH
Published 2016
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
