5441252
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

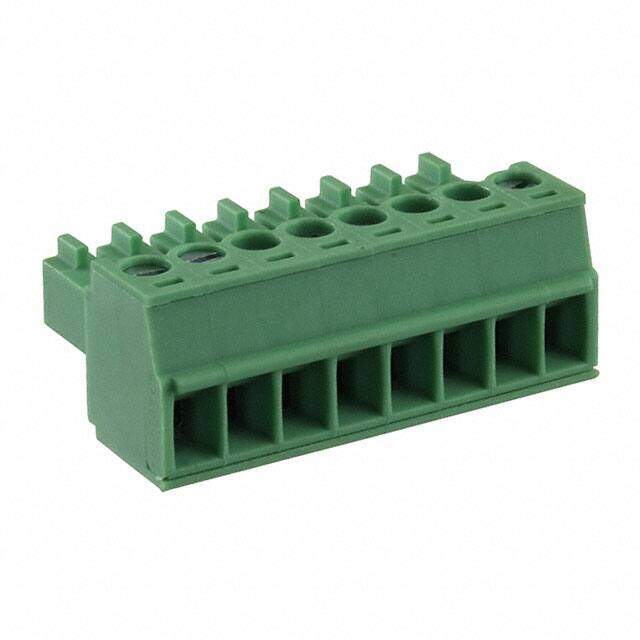

TERM BLOCK PLUG 8POS STR 3.5MM
PDF
/
Buying Options
Total Price: USD $4.18
Unit Price: USD $4.18
≥1 USD $4.18
≥10 USD $3.99872
≥100 USD $3.889776
≥500 USD $3.63528
≥1000 USD $3.344458
≥3000 USD $3.281854
Inventory: 131
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw
Reach Compliance Code not_compliant
Insulation Height 0.437 11.10mm
Pitch 0.138 3.50mm
Color Green
Number of Positions 8
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series BCP
Published 2014
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 9 Weeks
