5437787
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

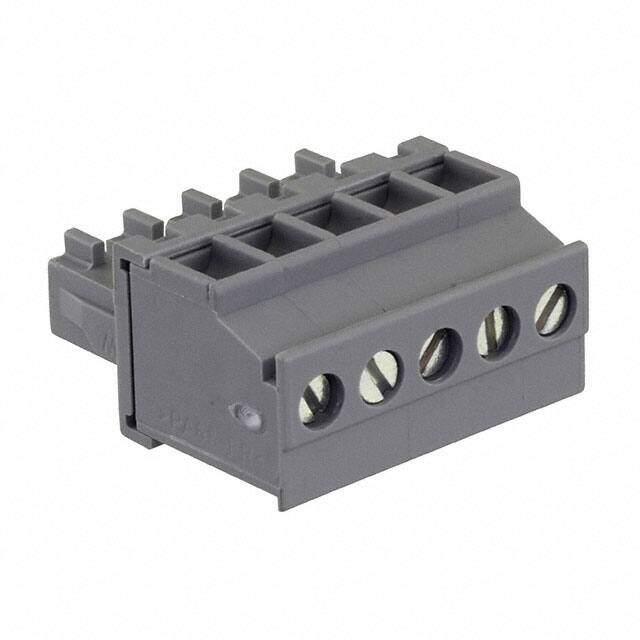

Pluggable Terminal Blocks BCVP-381R- 5
PDF
/
Inventory: 1268
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series BCVP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 5
Color Gray
Pitch 0.150 3.81mm
Orientation Straight
Insulation Height 0.752 19.10mm
Termination Style Screw
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
