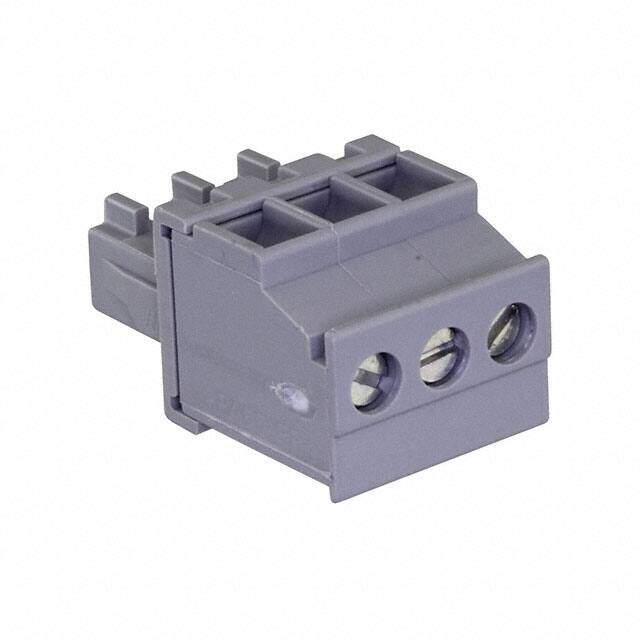

5437761
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks BCVP-381R- 3
PDF
/
Inventory: 1185
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 90°
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Termination Style Screw
Reach Compliance Code unknown
Insulation Height 0.752 19.10mm
Orientation Straight
Pitch 0.150 3.81mm
Color Gray
Number of Positions 3
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series BCVP
Published 2015
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
